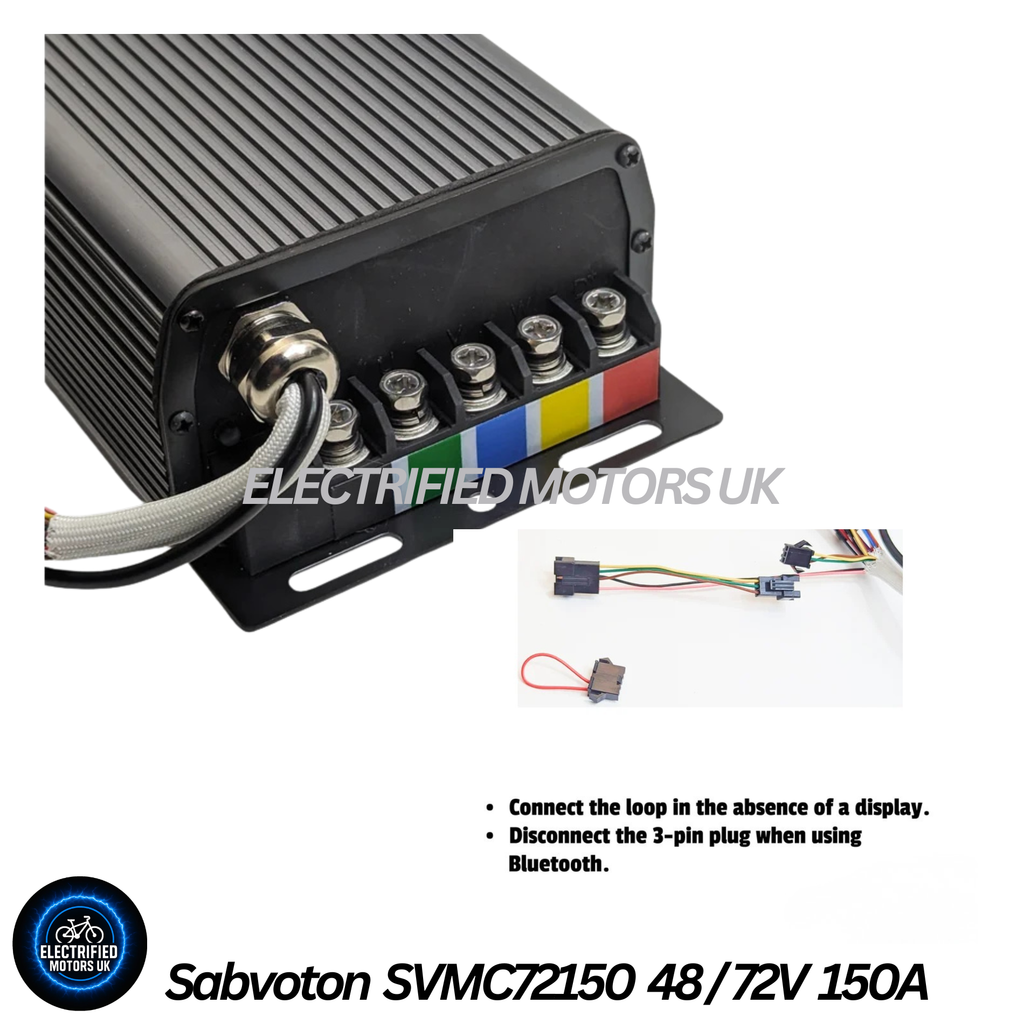

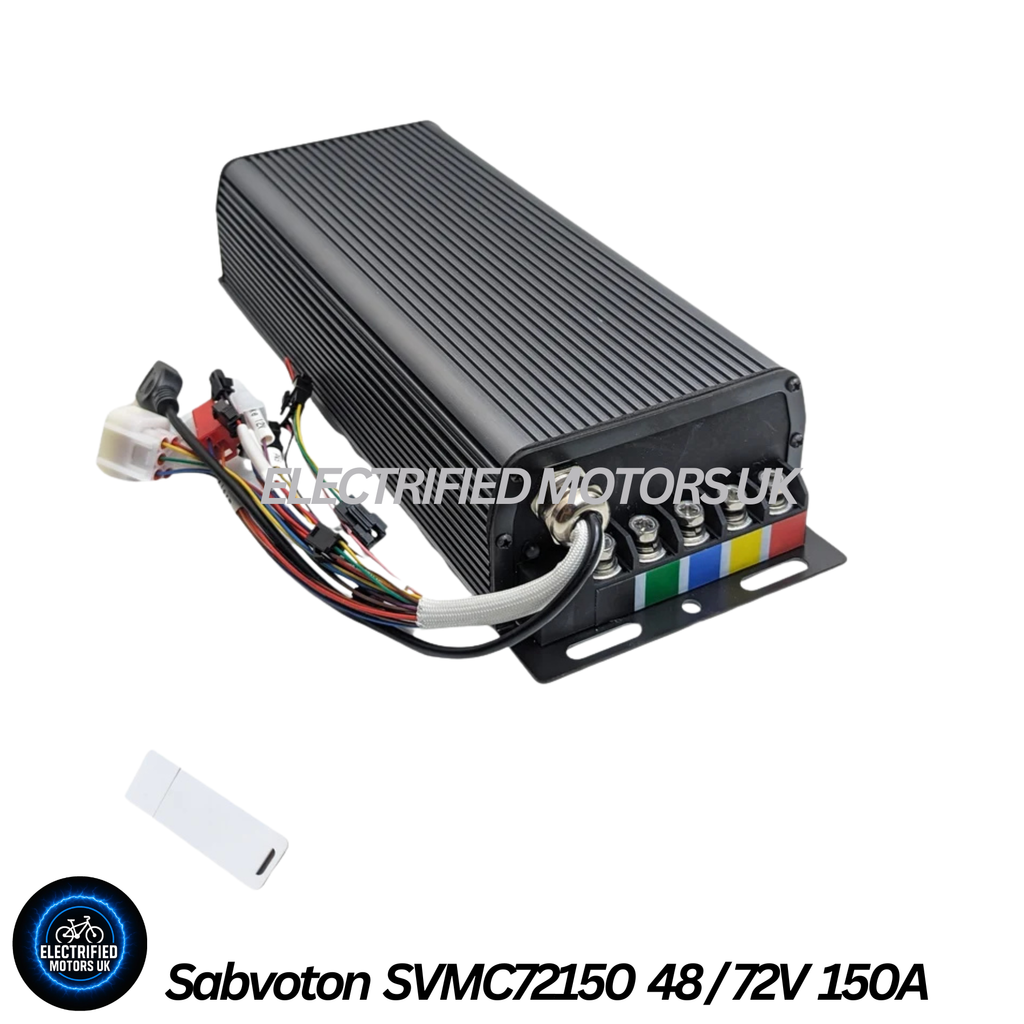

72V 150A Sabvoton eBike Controller – 48V-72V Sine Wave FOC

⚡ Sabvoton 150A 48V–72V High Power eBike Controller

150A DC Battery Current • 350A Max Phase Current • FOC Sine Wave • Bluetooth Programming • Flux Weakening • Regenerative Braking

🧰 Product Information

• Take your eBike or electric vehicle to the next level with the Sabvoton 150A high-power programmable controller. Designed for serious high-performance builds, the Sabvoton gives you extensive control over power delivery, torque, acceleration, motor response, top speed and braking performance.
• 🔋 Voltage Range: 48V – 72V
• ⚡ Maximum DC / Battery Current: Up to 150A
• 🔥 Maximum Phase Current: Up to 350A
• 🌊 Controller Type: FOC / Sine Wave
• 📱 Programming: USB Bluetooth programming dongle included
• 🏍️ Motor Compatibility: Suitable for compatible high-power brushless hub motors
• 🧱 Construction: Heavy-duty aluminium heatsink housing
• ⚙️ Application: High-power eBikes, eScooters, electric motorcycles and custom PEV builds

🏆 Why Choose Sabvoton?

• ⚡ Serious Power: Up to 150A battery current and 350A phase current for high-performance acceleration and torque when correctly matched to the motor and battery.
• 🌊 FOC Sine Wave Control: Advanced field-oriented control provides smooth and responsive motor control.
• 🎯 Strong Low-Speed Torque: High phase-current capability allows the controller to deliver substantial torque when correctly configured.
• 📱 Bluetooth Programming: Configure and tune the controller using the included USB Bluetooth programming dongle.
• 🔥 Flux Weakening: Allows additional motor RPM at higher speeds when correctly configured and supported by the motor and electrical system.
• 🔋 Regenerative Braking: Allows braking energy to be returned to the battery when correctly configured and when the battery and BMS can safely accept the charging current.
• 🛑 Electronic Braking: Configurable electronic braking functionality for compatible setups.
• 🔄 Reverse Function: Reverse functionality available for compatible installations.
• 🚀 Performance Modes: Configurable performance and speed settings allow the controller to be tailored to different riding requirements.
• 🧠 Motor Self-Learning: Motor identification/self-learning functionality for compatible motor systems.
• 🌡️ Protection Features: Configurable voltage, current and temperature protection parameters depending on controller/software version.

⚙️ Advanced Controller Tuning

The Sabvoton is designed for users who want much greater control over their electric vehicle than a standard plug-and-play controller can provide.

• ⚡ Battery / DC Current: Adjustable according to the controller and system limits.
• 🔥 Phase Current: Up to 350A maximum phase current.
• 🚀 Flux Weakening: Adjustable for increased high-speed motor RPM where appropriate.
• 🛑 Regenerative Braking: Adjustable on compatible setups.
• 🎛️ Throttle Response: Adjustable throttle and acceleration characteristics.
• 🔧 Motor Parameters: Multiple motor configuration settings.
• 🛡️ Protection Settings: Configurable system protection parameters depending on controller/software version.

🔧 Professional Sabvoton Tuning Service —  FROM £44.99

Don't want to tune the controller yourself? Let Electrified Motors UK configure it for your setup.

• ⚡ £44.99 Professional Tuning Service
• 🔋 We can configure the controller around your battery, BMS, motor and overall electrical setup.
• ⚙️ Tuning can include DC/battery current, phase current, throttle response, flux weakening, regenerative braking, e-brake, motor learning and relevant protection settings.
• 🔋 Regenerative braking will only be configured where the battery and BMS are capable of safely accepting the required charging current.
• 🔥 Current and performance settings will be configured with consideration for the capabilities of your motor, battery, BMS and electrical system.
• 📋 We will need information about your battery, BMS, motor and setup before tuning.

🔋 IMPORTANT — REGENERATIVE BRAKING

• Regenerative braking sends electrical energy back into the battery.
• Do not enable or increase regenerative braking without confirming that your battery cells and BMS can safely accept the charging current.
• ⚠️ A battery capable of high discharge current is not automatically capable of accepting the same current during charging or regeneration.
• 🔋 Always check your battery manufacturer's maximum charge current and BMS charging-current specification before using high levels of regenerative braking.

🔥 IMPORTANT — FLUX WEAKENING

• Flux weakening can increase motor RPM and potentially increase top speed, but it also increases the electrical and thermal demands placed on the motor and controller.
• ⚠️ Excessive flux weakening can increase motor temperature and electrical stress.
• Only use flux weakening within limits appropriate for your specific motor, battery and controller.

⚠️ HIGH-POWER & HIGHLY TUNABLE CONTROLLER

• THIS IS NOT A BASIC PLUG-AND-PLAY CONTROLLER.
• The Sabvoton 150A is a high-powered, highly tunable performance controller designed for experienced users and properly matched high-power systems.
• ⚠️ If you don't know what you're doing with the programming software, you can seriously damage or destroy your bike.
• Incorrect settings can damage the controller, motor, battery, BMS, wiring, connectors or other components.
• 🔥 Increasing battery current, phase current or flux weakening without understanding the limits of your components can result in excessive heat, electrical failure or mechanical damage.
• 🔋 Your battery must be capable of supplying the selected DC current and your BMS must be rated appropriately.
• 🏍️ Your motor must be capable of handling the selected phase current, power and thermal load.
• 🔌 Your wiring, connectors, fuses and other electrical components must be correctly rated.
• ⚠️ Just because the software allows a setting does not mean your bike can safely handle it.
• 🛠️ If you are not experienced with high-power electric vehicle controllers, professional installation and configuration is strongly recommended.
• Damage caused by incorrect installation, misuse, unsuitable settings or unauthorised modification may affect any applicable manufacturer or seller warranty.

🔌 System Compatibility

• 🔋 Battery: Must be suitable for the required voltage and DC current.
• 🛡️ BMS: Must handle the required discharge current and, when using regen, the required charging current.
• 🏍️ Motor: Must be capable of handling the selected power, phase current and thermal load.
• 🔌 Wiring & Connectors: Battery cables, phase wires, connectors and terminals must be appropriately rated.
• 🛑 Brakes: High-power builds should use a suitable braking system capable of safely stopping the vehicle.
• ⚠️ Always check your complete system before installation.

🚀 Ideal For High-Power Builds

• 🚲 High-performance eBike conversions
• ⚡ 48V / 52V / 60V / 72V electric bike systems
• 🏍️ High-power brushless hub motors
• 🔧 Custom eBike and electric vehicle builds
• 🔥 High-current performance PEV builds
• 🛠️ High-power controller upgrades and replacements
